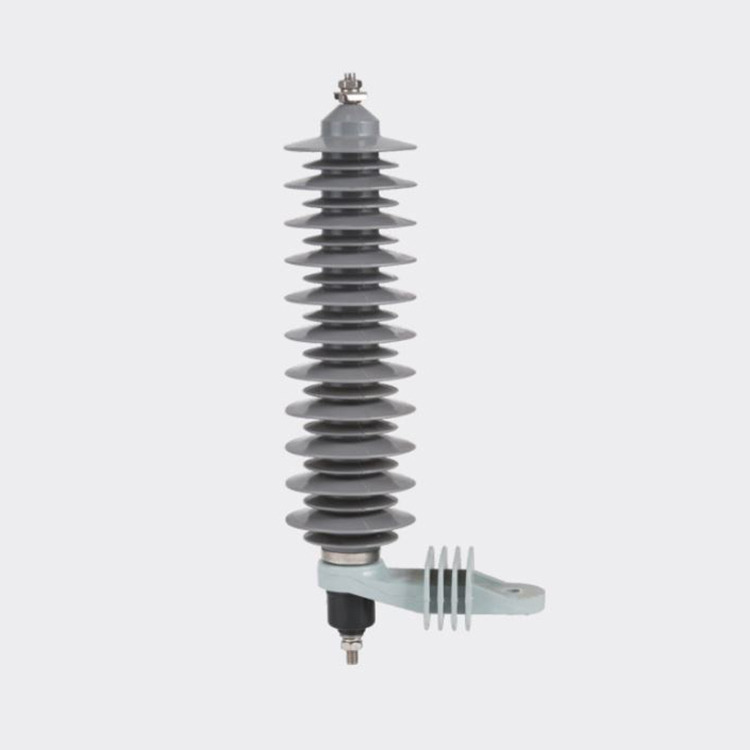

Name: Protective Function 33kv Lightning Surge Lighting Arrester Polymer Compound Copper Arrester
Brand: Protective Function 33kv Lightning Surge Lighting Arrester Polymer Compound Copper Arrester
SKU: YH5W
Price: 1 USD
Availability: InStock
Rating: 4.8 (196 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Model Number: YH5W

Color: Grey/Customized

Creepage Distance: 31 mm/KV

Product Name: Surge Arrester

Type: KYN28-12 / transformer

Warranty: 12 Months

Function: Protecting Function

Rated Voltage: 0.4 kv to 36 kv

Packing: Carton Box

Frequency: 50Hz/60Hz

Certificate: ISO9001

OEM: Offered

Основная информация

Сертификация: ISO9001

Model Number: YH5W

Оплата и доставка Условия

Packaging Details: Carton Packing

Supply Ability: 10000 Piece/Pieces per Month

Характер продукции

Technical Parameter

Type	Rated Voltage	MOCV	Max. Residual Voltage			Rectangular Current Impulse 2ms	High Current Impulse withstand 4/10μs	Creepage distance	Weight
	Rated Voltage	MOCV	steep Current Impulse 1/4μs	Nominal Current Impulse 8/20μs	Switching Current Impulse 30/60μs	Rectangular Current Impulse 2ms	High Current Impulse withstand 4/10μs	Creepage distance	Weight
	KV	KV	KV	KV	KV	A	KA	mm/KV	KG
HY5W-3	3	2.55	11.3	9	8.9	150	65	31	1.15
HY5W-6	6	5.1	22.6	18	16.8	150	65	31	1.20
HY5W-9	9	7.65	33.7	28	23.8	150	65	31	1.35
HY5W-10	10	8.4	36	30	23	150	65	31	1.40
HY5W-11	11	9.4	40	33	30	150	65	31	1.50
HY5W-12	12	10.2	42.2	36	27	150	65	31	1.60
HY5W-15	15	12.7	51	45	38.5	150	65	31	2.00
HY5W-18	18	15.3	61.5	54	46.2	150	65	31	2.20
HY5W-21	21	17.0	71.8	63	54.2	150	65	31	2.30
HY5W-24	24	19.5	82	72	62	150	65	31	2.38
HY5W-27	27	22.0	92	81	69.8	150	65	31	2.50
HY5W-30	30	24.4	102	90	79	150	65	31	2.80
HY5W-33	33	27.5	112	99	86.7	150	65	31	3.00
HY5W-36	36	29.0	117	108	92.4	150	65	31	3.20
HY5W-39	39	31.5	123	111	94	150	65	31	3.50
HY5W-42	42	33.6	126	114	101	150	65	31	3.80

Detailed Images

Product Detials ____________

Product Dimensions _____________

Packing Style ______________

35kv Equipments Testing Center _____________
